Revolutionizing ML Workflows with Google Cloud NetApp Volumes and GKE

In the fast-paced world of artificial intelligence (AI) and machine learning (ML), the scalability and efficiency of backend infrastructure are pivotal for the success of any AI project. By integrating tools like Google Cloud NetApp Volumes with Google Kubernetes Engine (GKE), organizations can significantly enhance their ML workflows, all while optimizing costs for long-term sustainability.

In this blog post, we delve into how this powerful combination can streamline model training processes, boost performance, and improve resource utilization. Additionally, we will explore a detailed workflow that maximizes the potential of this integration to elevate your ML operations.

Watch the demonstration showcasing the capabilities discussed in this blog post.

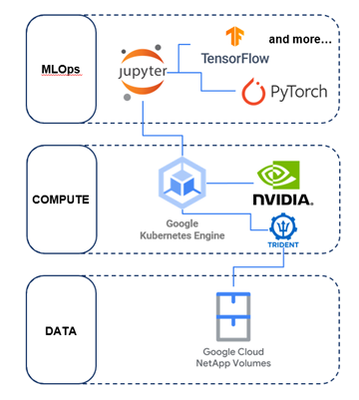

Solution Overview

The core components of this innovative solution are as follows:

• Google Cloud NetApp Volumes: A high-performance, scalable file storage solution that hosts datasets for ML model training.
• Google Kubernetes Engine (GKE): A managed platform that orchestrates containerized applications, enhanced with the NetApp Trident Container Storage Interface (CSI) driver for managing NetApp Volumes.
• NVIDIA GPU Accelerators: Added as worker nodes in GKE to provide high compute power, essential for expediting the model training process.
• JupyterLab: Deployed for code execution and experimentation, offering an interactive development environment.

Streamlined Workflow

Training a machine learning model involves multiple steps, each designed to enhance efficiency and effectiveness. Below is a comprehensive breakdown of these steps:

Step 1: Data Preparation with Google Cloud NetApp Volumes

Start by preparing your data within a volume using the Extreme service level of NetApp Volumes. This configuration delivers up to 30GiBps of throughput and supports volumes as large as 1PiB, catering to data-intensive AI/ML workloads.

Step 2: Kubernetes Setup with GKE

Set up a GKE cluster configured with the NetApp Trident CSI driver to manage the NetApp Volumes, facilitating seamless integration of the dataset into the Kubernetes environment. Make use of Kubernetes storage classes to map the performance profile for your required volumes accurately. This allows you to scale resources based on demand, switching to GPU nodes during model training phase as needed.

Step 3: Data Presentation to Kubernetes

Utilize the Trident volume import feature to present the dataset in NetApp Volumes to the GKE cluster using a PersistentVolumeClaim (PVC). Example command for volume import:

tridentctl import volume <backend_name> <volume_name> -f pvc.yaml

Step 4: Running the ML Framework with JupyterLab

Deploy the chosen ML framework using a container image on GKE, ideally one integrated with JupyterLab. This provides an interactive interface for testing and refining ML models.

Step 5: Scaling with GPU-Powered Compute

Adding GPU-powered worker nodes within the GKE cluster significantly enhances computational capabilities, catering to the increased performance demands of extensive datasets. GKE automates driver installations for immediate GPU use.

Step 6: Model Training and Fine-tuning

Load the dataset into the ML framework and begin the training process. Remember, ML is iterative; the initial training might not yield optimal results. Save the model’s evolving state, including weights and biases, to a designated volume for model artifacts.

Step 7: Versioning and Cost-Optimization

Employ the NetApp Snapshot™ technology to create snapshot copies of volumes containing datasets and models. This step is crucial for maintaining version control and ensuring reproducibility in ML projects, helping build a cost-optimized data lineage.

The Road Ahead: Future Trends in AI Infrastructure

As cloud technologies mature, we can expect to see the following trends emerge:

• Increased Adoption of Serverless Architectures: Enterprises will continue to embrace serverless computing models to eliminate the complexities of infrastructure management and optimize costs further.
• Enhanced AI Capabilities through Improved Data Management: The need for high-performance data storage solutions will grow alongside increasing data volumes, compelling organizations to invest in systems like Google Cloud NetApp Volumes.
• Broader GPU Access: More organizations will leverage GPU capabilities, paving the way for faster model training and reduced time-to-market for AI applications.

Who Should Adopt This Approach?

• Startups aiming for rapid scale and performance in ML capabilities.
• Enterprises looking to enhance their existing AI infrastructure without significant upfront investments.
• Cloud architects seeking effective, scalable, and future-proof solutions for their organizations’ infrastructure needs.

Conclusion

By adopting the integration of Google Cloud NetApp Volumes and Google Kubernetes Engine, organizations can implement powerful, cost-effective workflows that streamline ML operations and support sustainable growth.

Stay Updated

For further insights and updates on this topic, follow NetApp to stay informed on the latest advancements in MLOps and AI infrastructure solutions.

Happy training!
